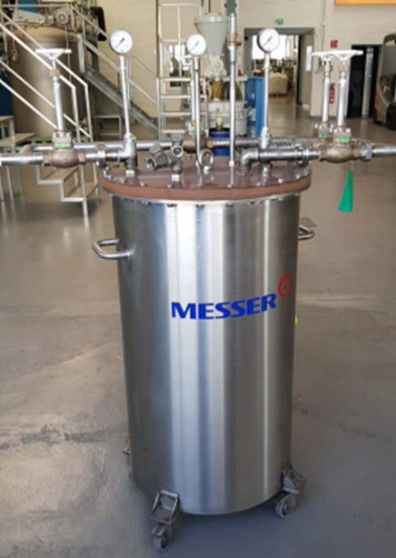

Subcooler
Technical Data
Capacity
- 150 kg/h Nitrogen can be subcooled
- Inlet: Nitrogen 5 to 7 bar -180 °C, connection ½”
- Outlet: Nitrogen 5 to 7 bar -194 °C, connection ¼”
Subcooler
Technical Data
Capacity
- 150 kg/h Nitrogen can be subcooled
- Inlet: Nitrogen 5 to 7 bar -180 °C, connection ½”
- Outlet: Nitrogen 5 to 7 bar -194 °C, connection ¼”
Subcooler (high capacity)
Technical Data
Capacity
- 1.200 kg/h Nitrogen can be subcooled
- max. pressure: 6 bar(g)
- Inlet: Nitrogen 5 bar(g) / -187 °C
- Outlet: Nitrogen 5 bar(g) / -194 °C
- No electricity needed

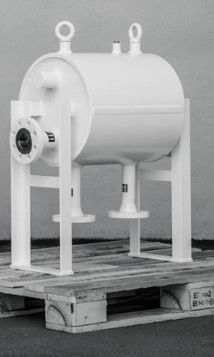

CO2-EcoVap
Technical Data
- LCO2-flow: 500 kg/h
- Capacity: 43 kW
- Water or brine flow: 15 m³/h
- Footprint: 568 x 482 mm
- Height: 835 mm
- Weight (empty): 155 kg

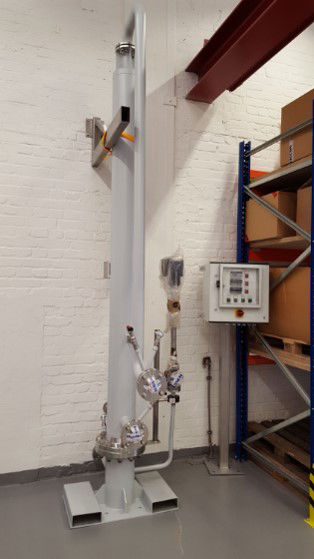

EcoVap Pilot Plant
Technical Data
-Gas flow (LIN, LOX, LCO2): 500 m³/h
- Water or brine flow: 10 to 25 m³/h
- Footprint: 1,150 x 670 mm
- Height: 3,650 mm
- Weight (empty): 338 kg
- Control box (separate)
